Updating Embedded Charts in DocX templates

Ambience 2020+ ETL Cookbook
1

This sample (59.8 KB) shows how an embedded chart’s data in the docx template can be updated using ETL.

Preparation:

Unzip and copy the following files to your Ambience/Repertoire 202x installation path:

  • ./data/in/chart/in.xslt
  • ./data/in/chart/DirectDataEdit.docx

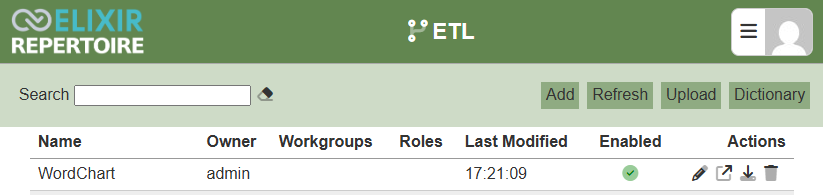

Upload WordChart.chainset.json to the ETL module.

image823×195 14 KB

Sample Details:

The sample docx used is from Libre Office, the output from Word may look different but the way chart values are embedded remain the same.

image695×536 8.51 KB

Unzip DirectDataEdit.docx to view the embedded chart data:

  • DocX allows creating charts using embedded data.

    \DirectDataEdit\word\embeddings\Microsoft_Excel_Worksheet.xlsx

  • Updating the embedded chart data does not alter the output because Word keeps a cached copy and only updates when explicitly edited. The cached copy can be found in the chart XML, e.g.:

    \DirectDataEdit\word\charts\chart1.xml

Contents of chart1.xml are as follows, matching what is shown on the chart (and also what is in the embedded XLSX):

  <c:numRef>
  <c:f>Sheet1!$B$2:$B$6</c:f>
  <c:numCache>
  <c:formatCode>General</c:formatCode>
  <c:ptCount val="5"/>
  <c:pt idx="0"><c:v>9</c:v></c:pt>
  <c:pt idx="1"><c:v>3</c:v></c:pt>
  <c:pt idx="2"><c:v>1</c:v></c:pt>
  <c:pt idx="3"><c:v>8</c:v></c:pt>
  <c:pt idx="4"><c:v>8</c:v></c:pt>
  </c:numCache>
  </c:numRef>

The attached in.xslt stylesheet will be used to update the chart values in chart1.xml by loading ./data/out/chart/in.xml and using its contents to substitute the existing c:numCache contents.

<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
 xmlns:c="http://schemas.openxmlformats.org/drawingml/2006/chart">
<xsl:param name="fileName" select="'./data/out/chart/in.xml'" />
<xsl:param name="updates" select="document($fileName)" />

<xsl:template match="@* | node()">
  <xsl:copy>
    <xsl:apply-templates select="@* | node()"/>
  </xsl:copy>
</xsl:template>

<xsl:template match="c:numCache">
  <c:numCache>
  <xsl:apply-templates select="$updates/c:numCache/node()" />
  </c:numCache>
</xsl:template>

</xsl:stylesheet>

ETL Chainset Details:

The WordChart.chainset.json sample has the following steps:

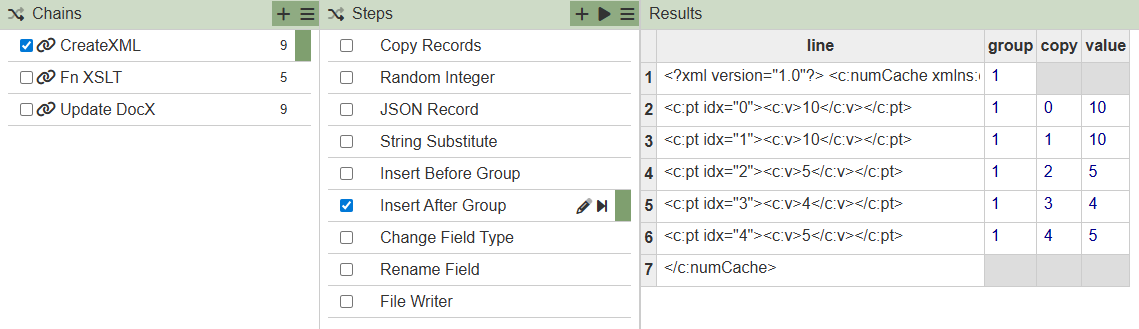

  • CreateXML: Generates five random values for the chart and writes them out to ./data/out/chart/in.xml, these random numbers are then substituted into a pattern:

    “line” : “<c:pt idx="${copy}"><c:v>${value}</c:v></c:pt>\n”

image1139×329 21.3 KB

A header (Insert Before Group) and footer (Insert After Group) are then inserted, all lines changed to bytes and concatenated to a file e.g.:

<?xml version="1.0"?>
<c:numCache xmlns:c="http://schemas.openxmlformats.org/drawingml/2006/chart">
<c:formatCode>General</c:formatCode>
<c:ptCount val="5"/>
<c:pt idx="0"><c:v>9</c:v></c:pt>
<c:pt idx="1"><c:v>6</c:v></c:pt>
<c:pt idx="2"><c:v>10</c:v></c:pt>
<c:pt idx="3"><c:v>6</c:v></c:pt>
<c:pt idx="4"><c:v>9</c:v></c:pt>
</c:numCache>

  • Fn XSLT: A reusable Function which given an XML file (chart1.xml) and an XSLT file (in.xslt) can produce an output chart1.xml with the chunk replaced.

  • Update DocX: This ETL chain deletes any old temp storage, unzips the docx into temp, calls the XSLT on the chart1.xml file inside temp and then zips the result back up into a result.docx with the new chart values inside.

Note:

  • Execute the sample by running CreateXML followed by Update DocX.
  • The Copy Records, Random Integer and Insert Before Group steps in CreateXML can be modified/replaced for other ETL steps to ingest incoming data.
  • This sample is based on updating a chart with a fixed set of series and columns.
  • This sample only demonstrates updating the chart1.xml file which is sufficient if rendering DocX to PDF or viewing in Word (Word displays the cache). However, if a user opens the chart’s Edit Data in Word, the untouched embedded XLSX will show the old values and editing there reverts the chart. Updating the embedded Microsoft_Excel_Worksheet.xlsx as well is left as an exercise.
